Description

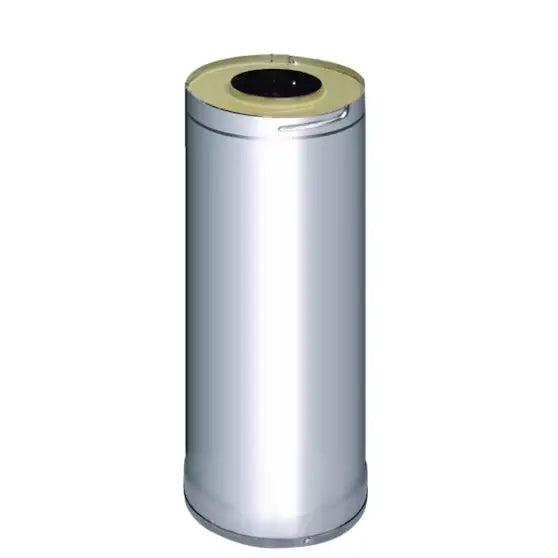

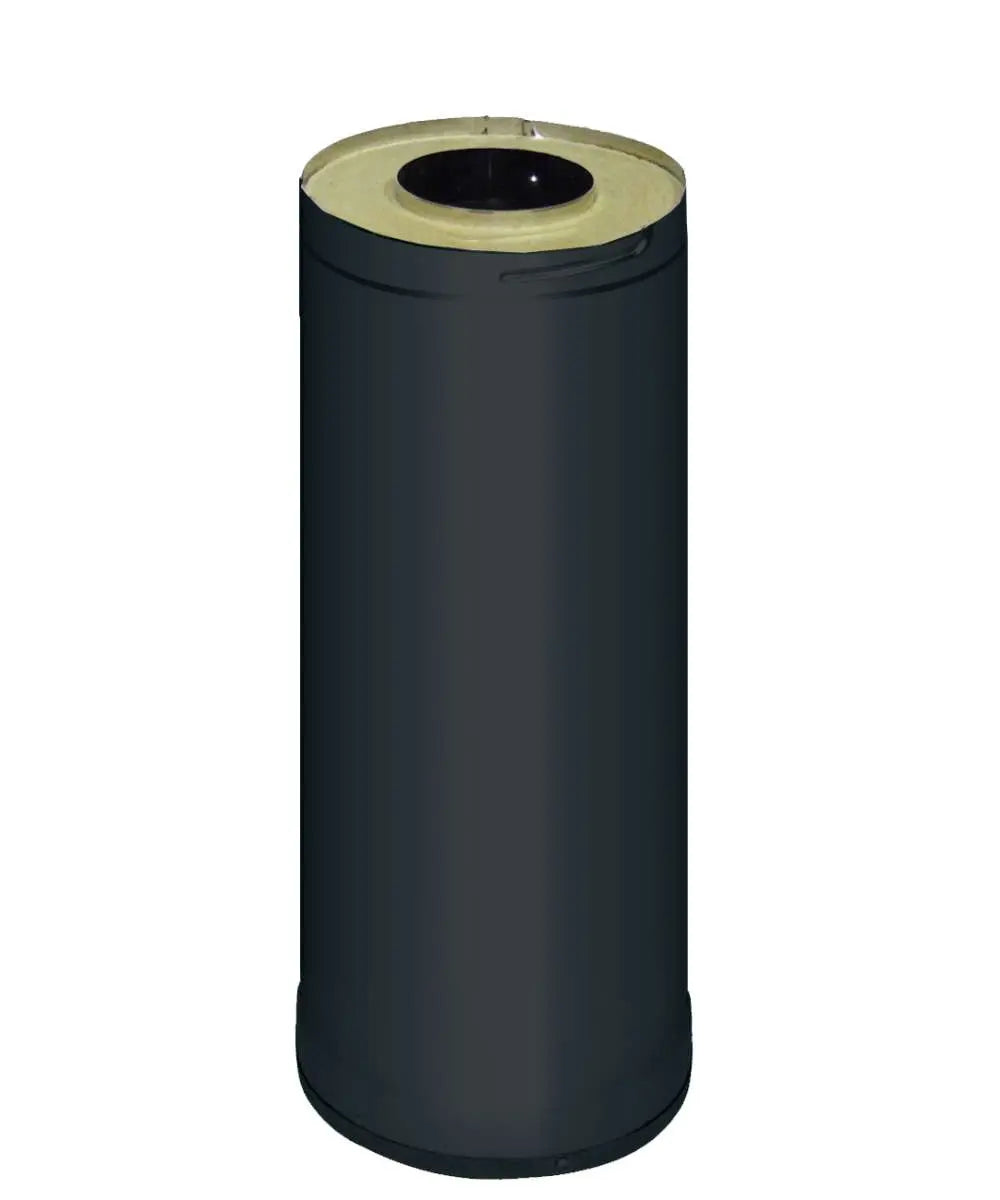

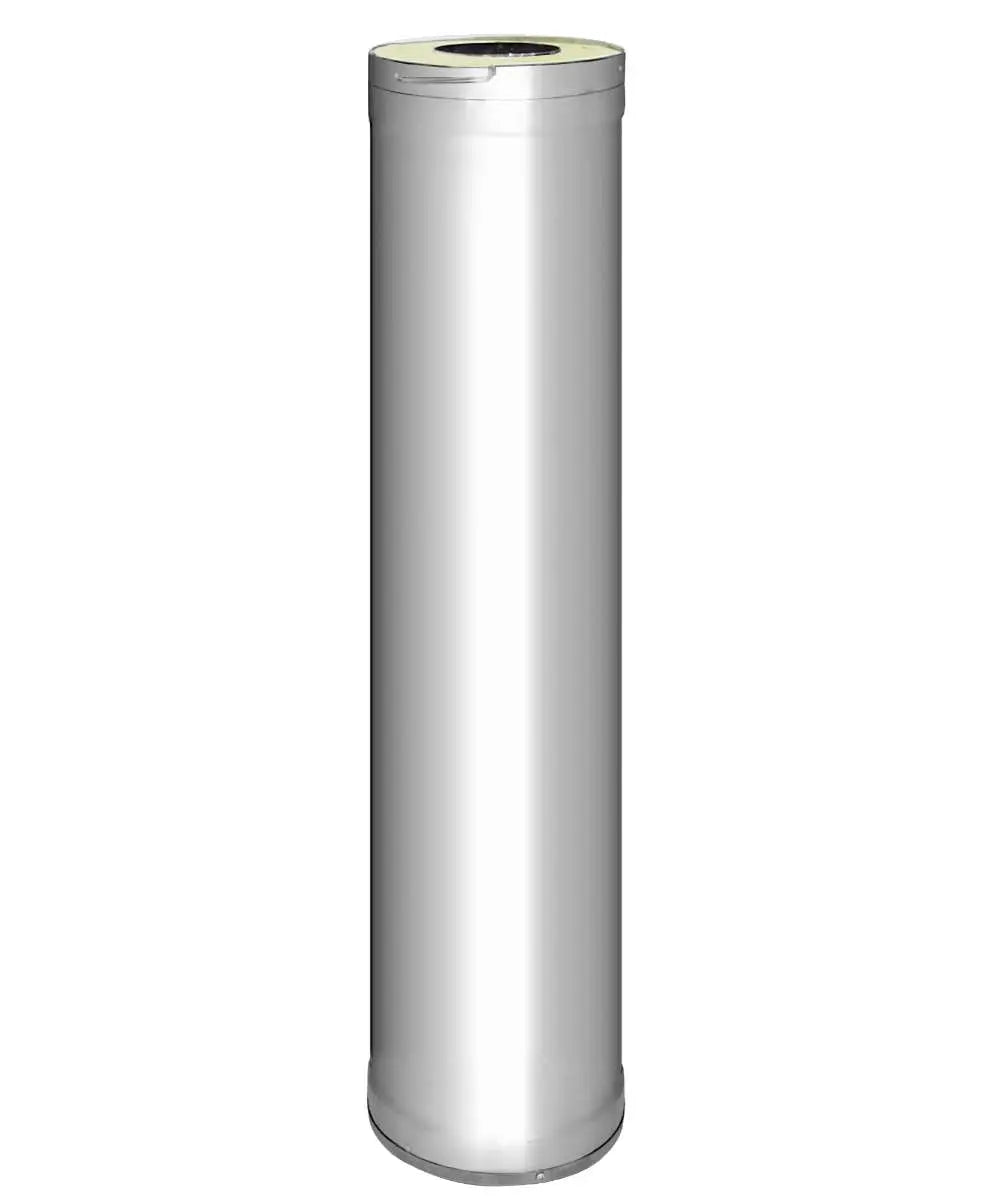

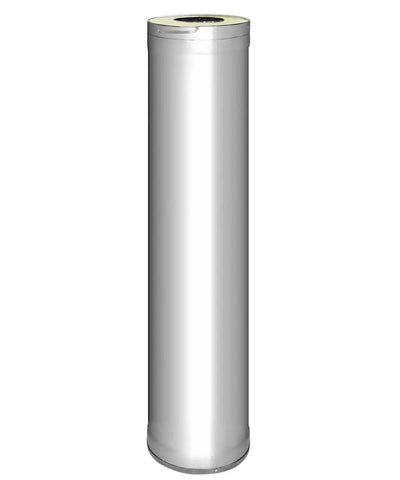

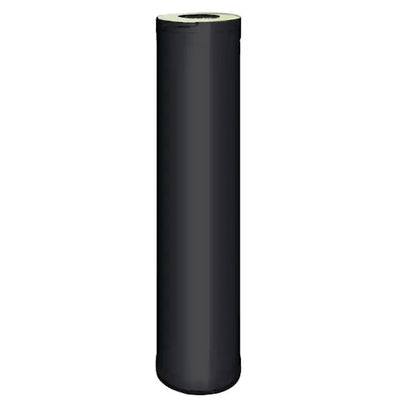

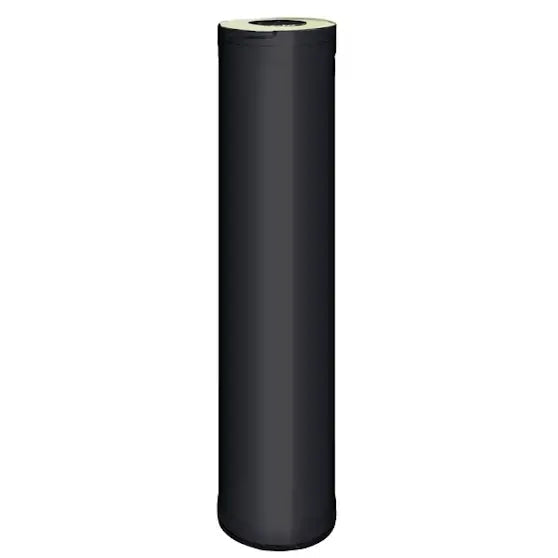

Harvia Wood Heaters Chimney Extensions
The stainless steel chimney extension is designed to minimize movement resulting from temperature fluctuations. Crafted from durable stainless steel, it is suitable for installation both indoors and outdoors.
Its joint mechanism and supplementary parts are threaded together, while the smoke pipes are securely locked in place using grooves. These thoughtful design features help stabilize the chimney structure and reduce shifting due to heat expansion and contraction.
Model: WHP500
- Material: Stainless Steel
- Flexural Strength / Tensile Strength: 16.4 ft (5 m)
- Non-vertical Installations: Not Allowed
- Height: 19.6" (500 mm)
- Diameter: 8.6" (220 mm)
- Weight: 7.7 lbs
Model: WHP500M
- Flexural Strength / Tensile Strength: 16.4 ft (5 m)
- Non-vertical Installations: Not Allowed
- Wind Load: 6.5 ft (2 m) above last support
- Maximum Spacing of Lateral Supports: 9.8 ft (3 m)
- Weight: 7.7 lbs
- Diameter: 8.6" (220 mm)
- Height: 19.6" (500 mm)
Model: WHP1000
- Material: Stainless Steel
- Flexural Strength / Tensile Strength: 16.4 ft (5 m)
- Non-vertical Installations: Not Allowed
- Wind Load: 6.5 ft (2 m) above last support
- Maximum Spacing of Lateral Supports: 9.8 ft (3 m)
- Weight: 14.8 lbs
- Diameter: 8.6" (220 mm)
- Height: 39.3" (1000 mm)
Model: WHP1000M
- Flexural Strength / Tensile Strength: 16.4 ft (5 m)
- Non-vertical Installations: Not Allowed
- Wind Load: 6.5 ft (2 m) above last support
- Maximum Spacing of Lateral Supports: 9.8 ft (3 m)
- Weight: 14.8 lbs
- Diameter: 8.6" (220 mm)
- Height: 39.3" (1000 mm)
