Description
Â

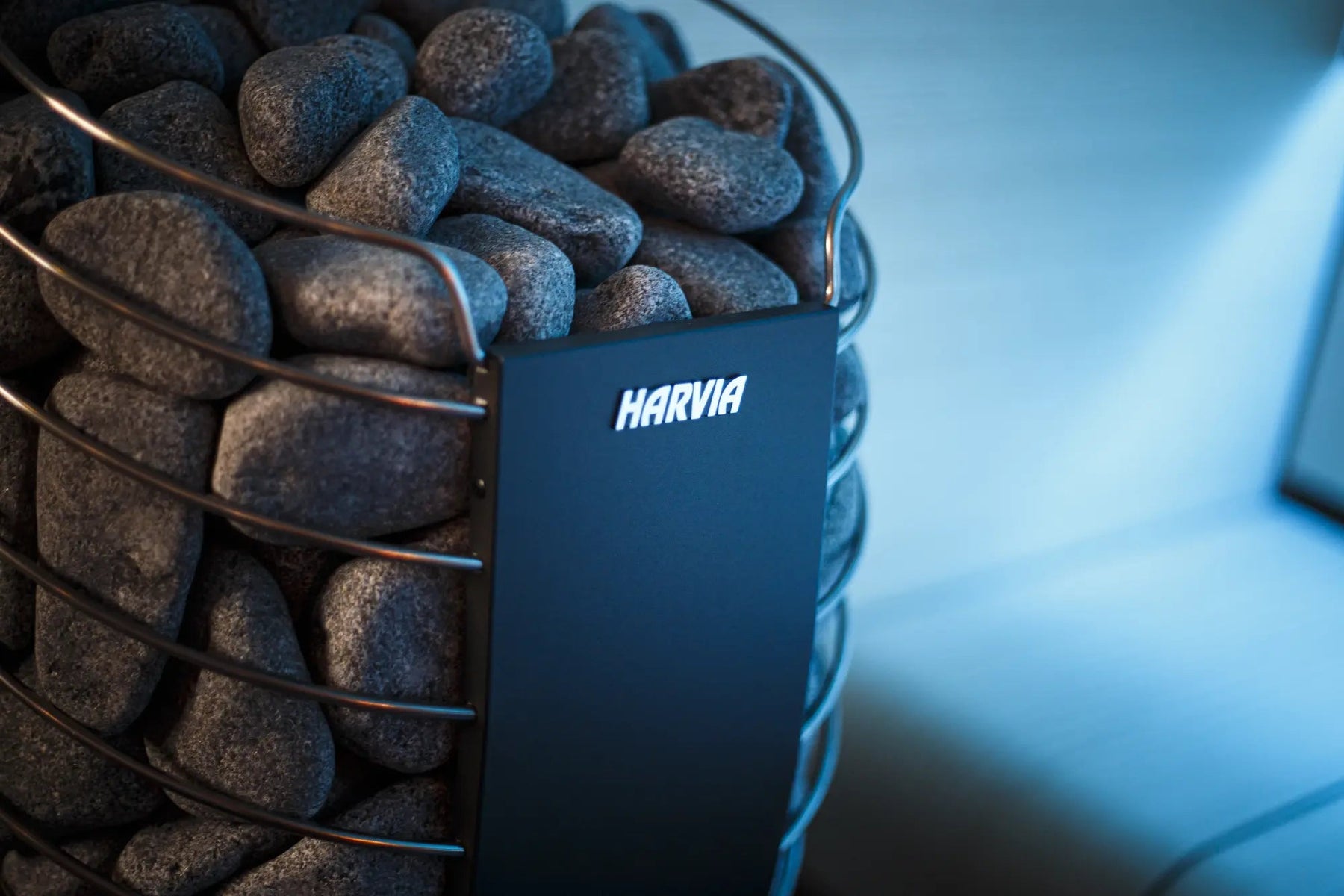

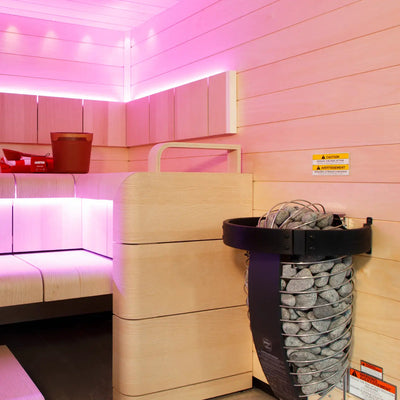

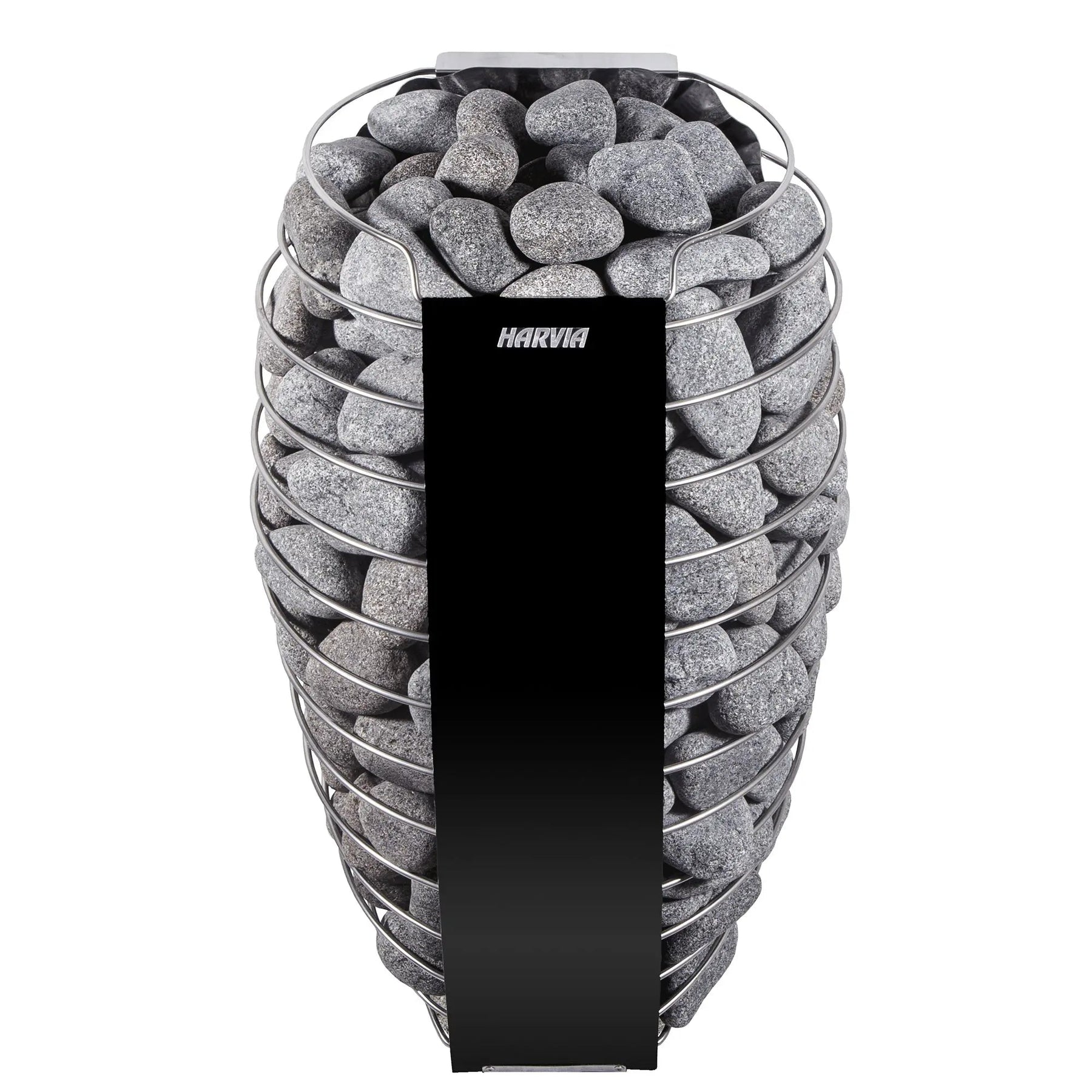

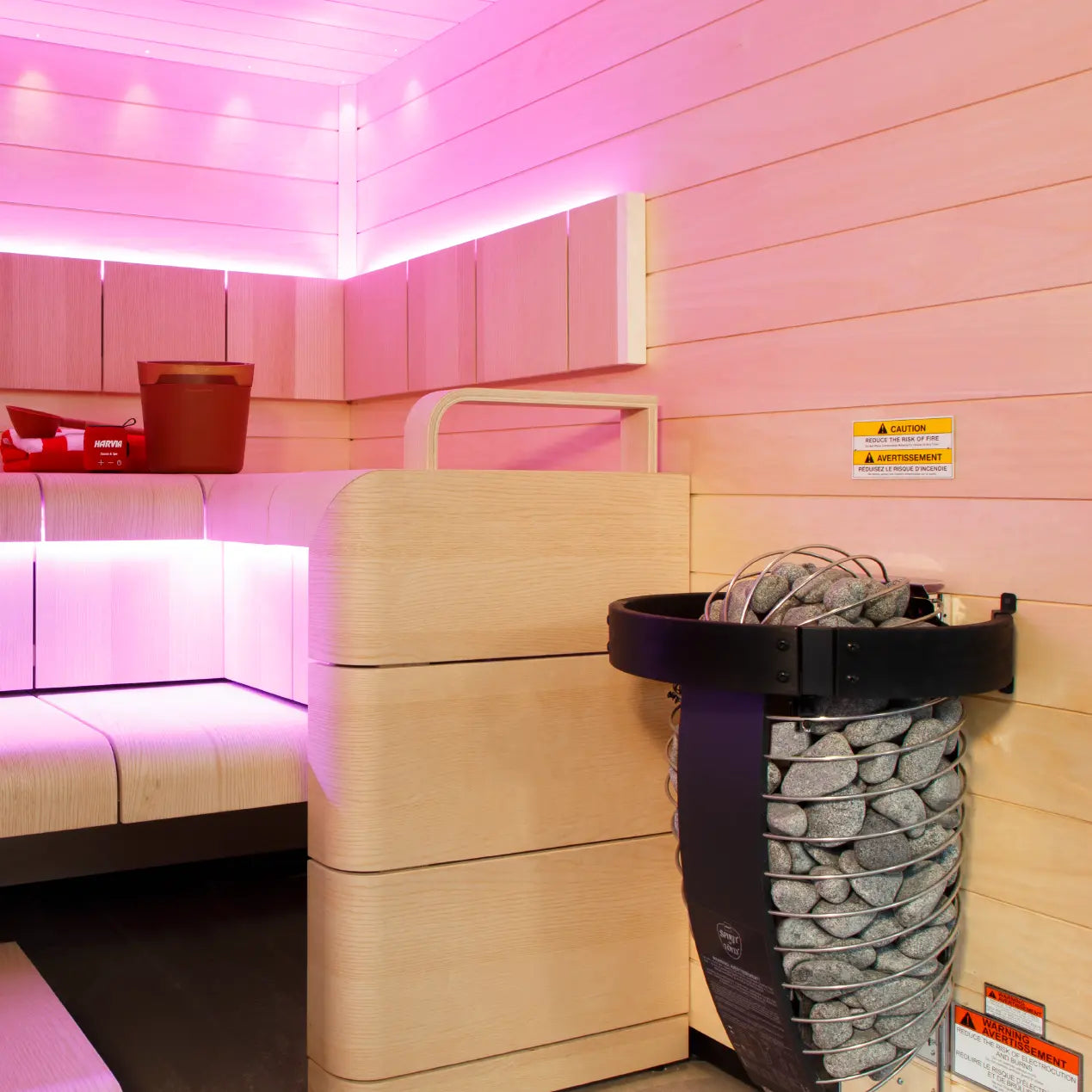

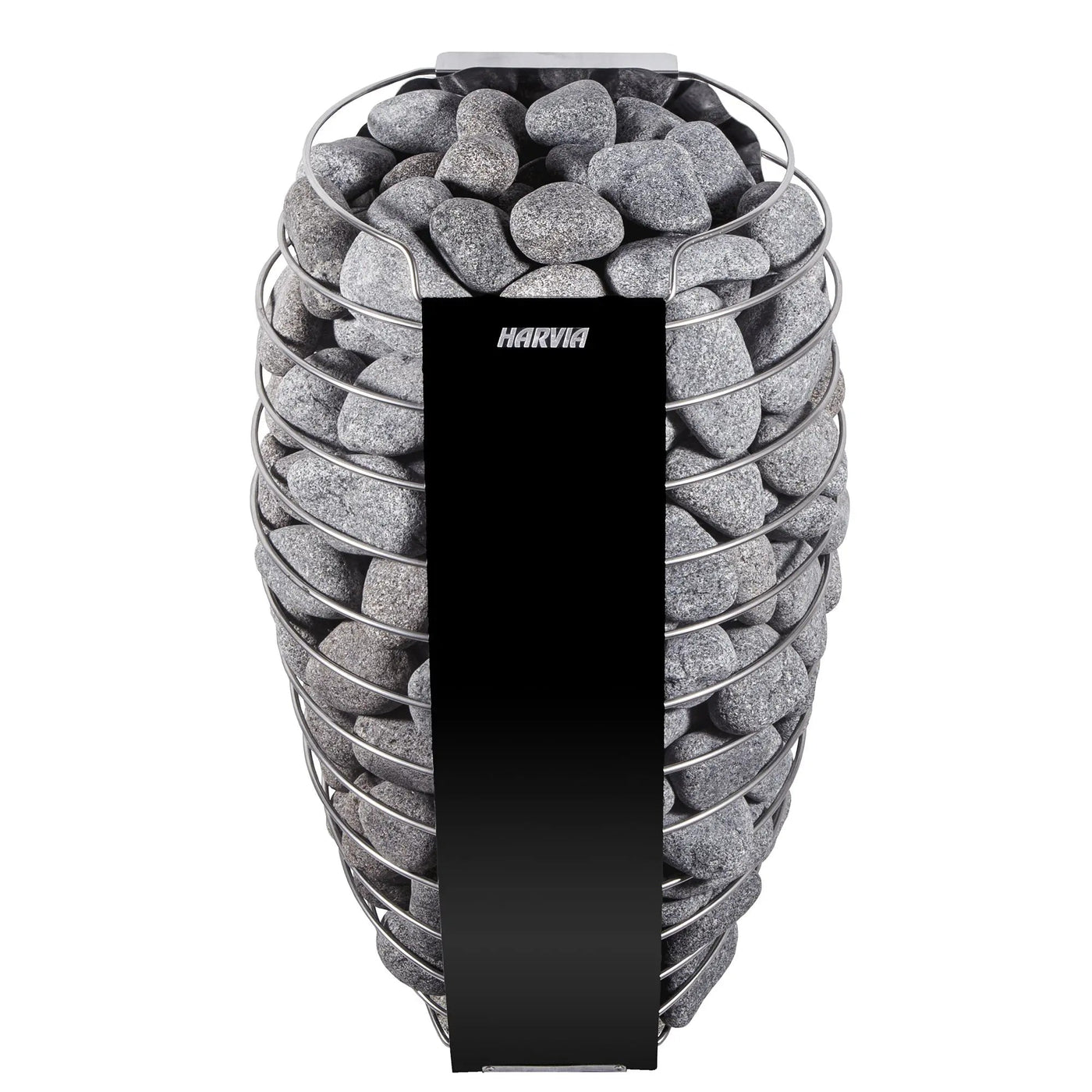

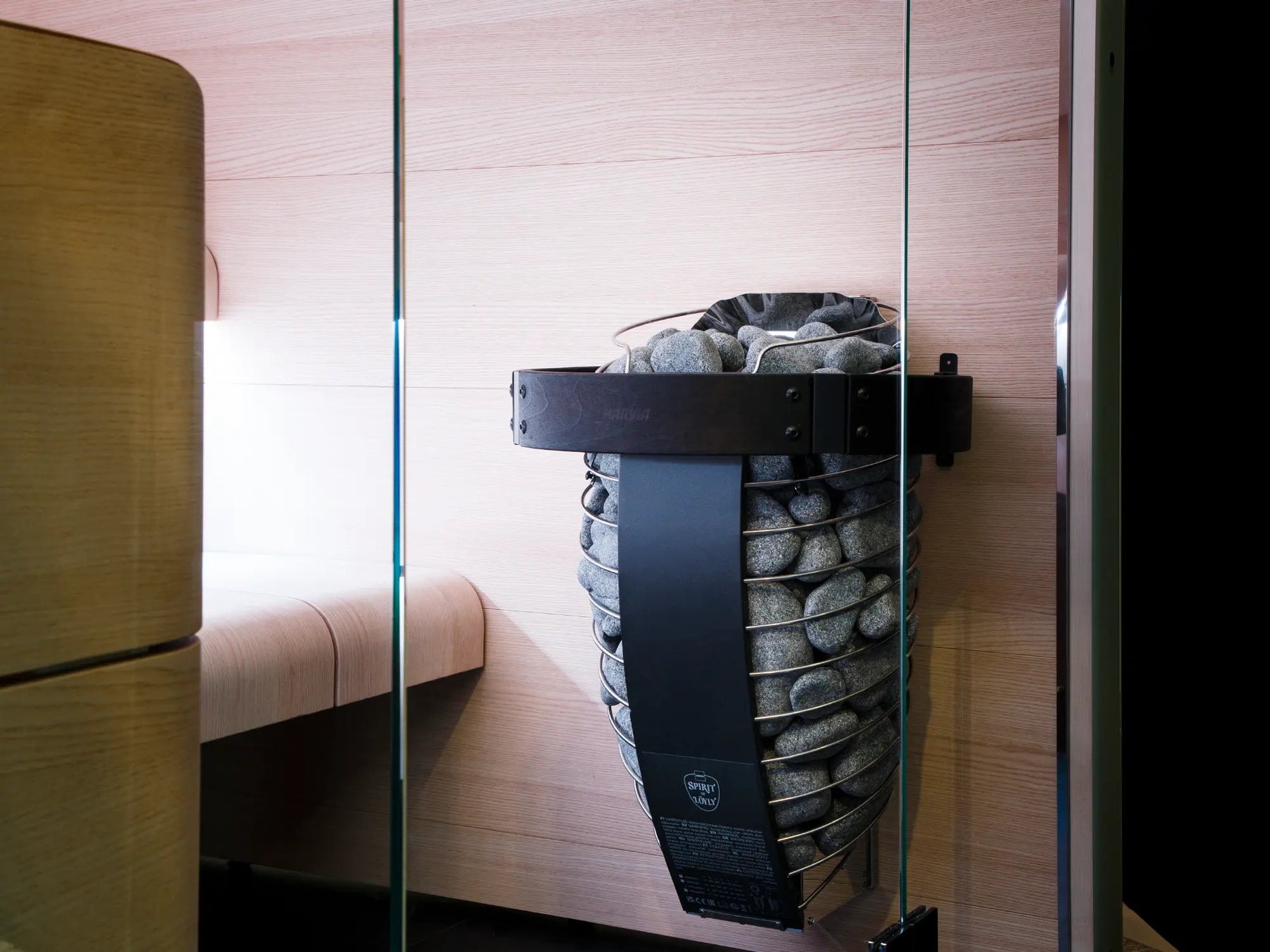

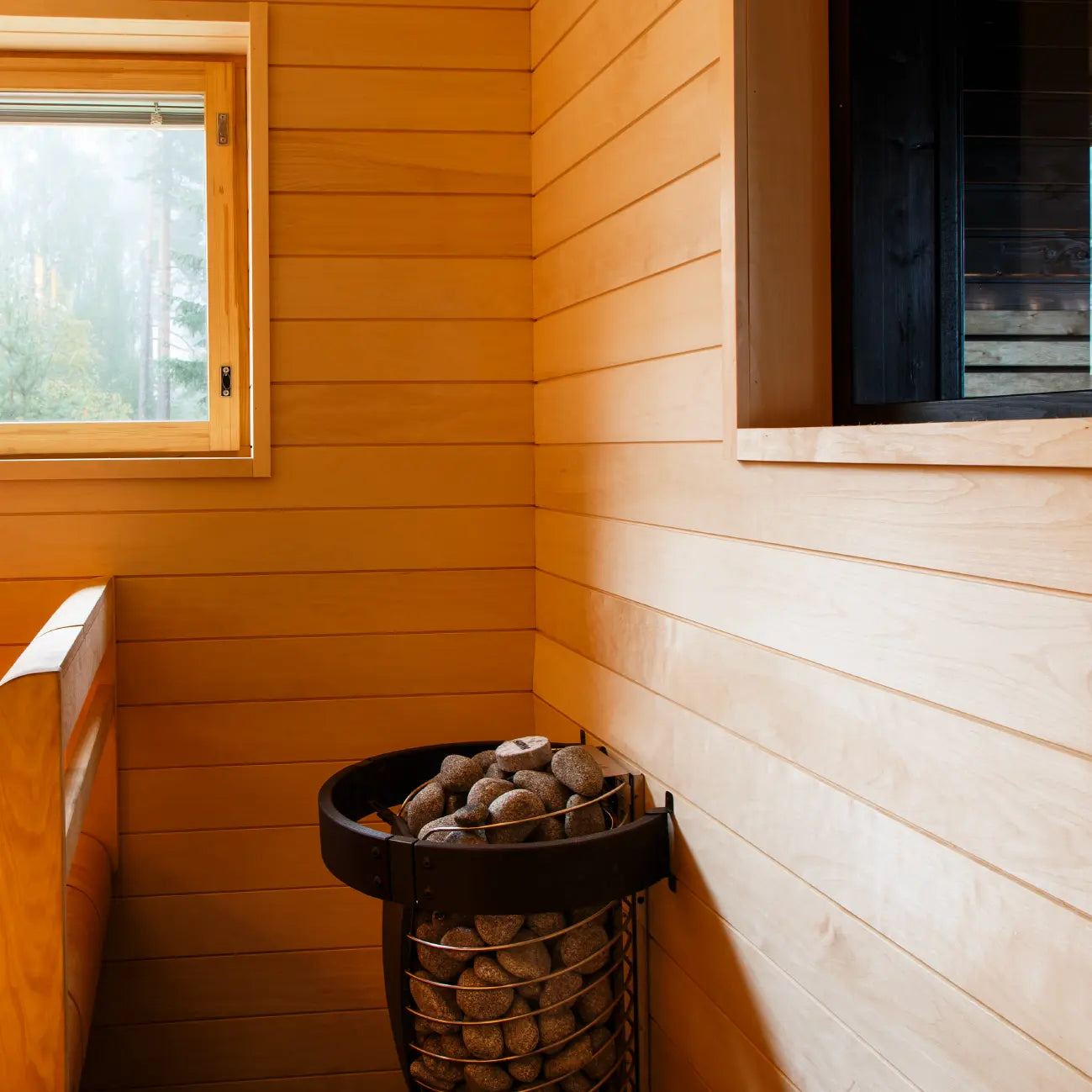

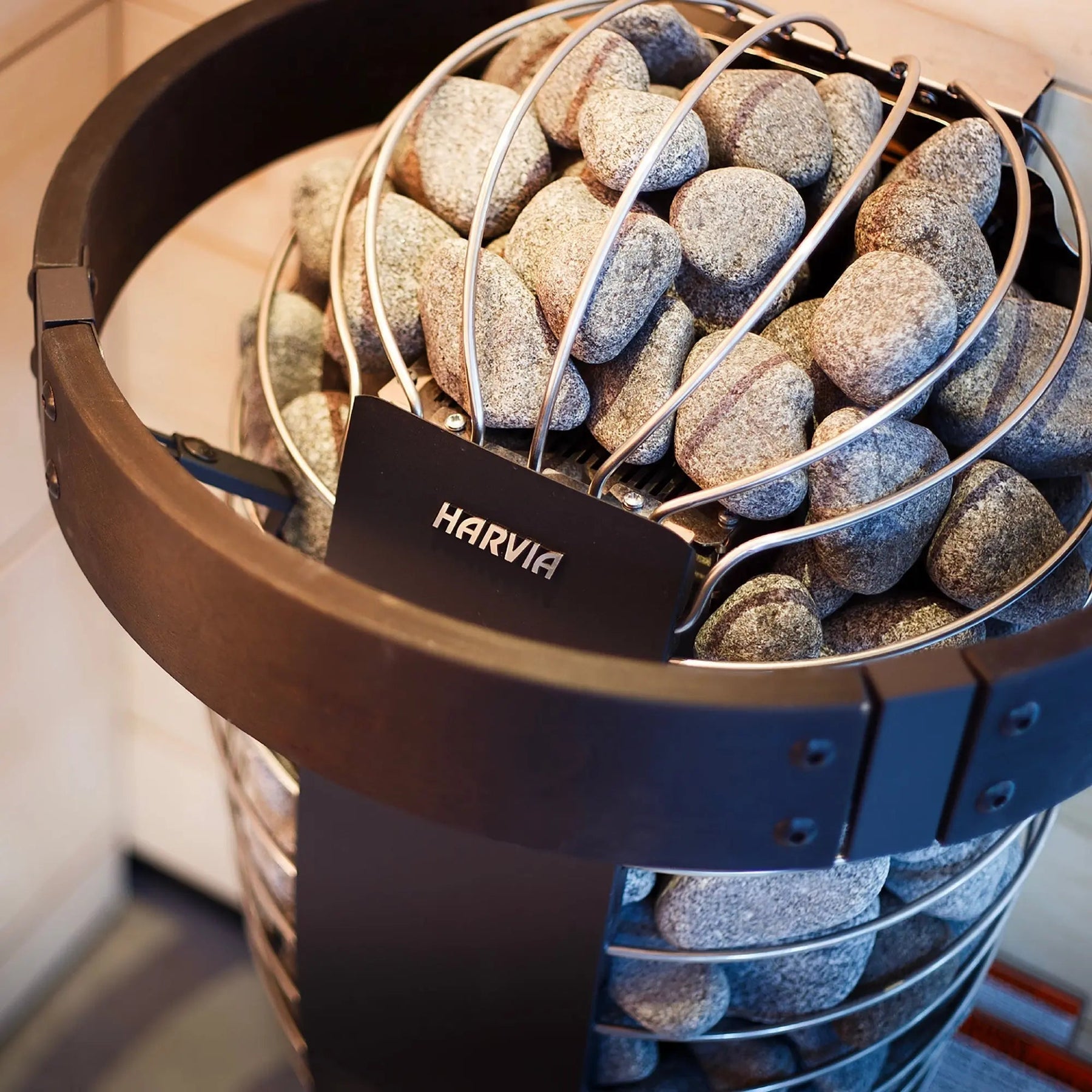

The elegantly curved shape of the Harvia 9kW Spirit SP90E sauna heater has a natural, organic design which is highlighted by the rounded sauna stones. This wall-mounted heater has a modern look and heats quickly to your preferred temperature. The large stone capacity of this heater provides a nice and even steam, which is exactly what you want from your heater.
This package includes everything you need to run your sauna.
Features
- Wall-mounted design
- Stylish and high-quality heater

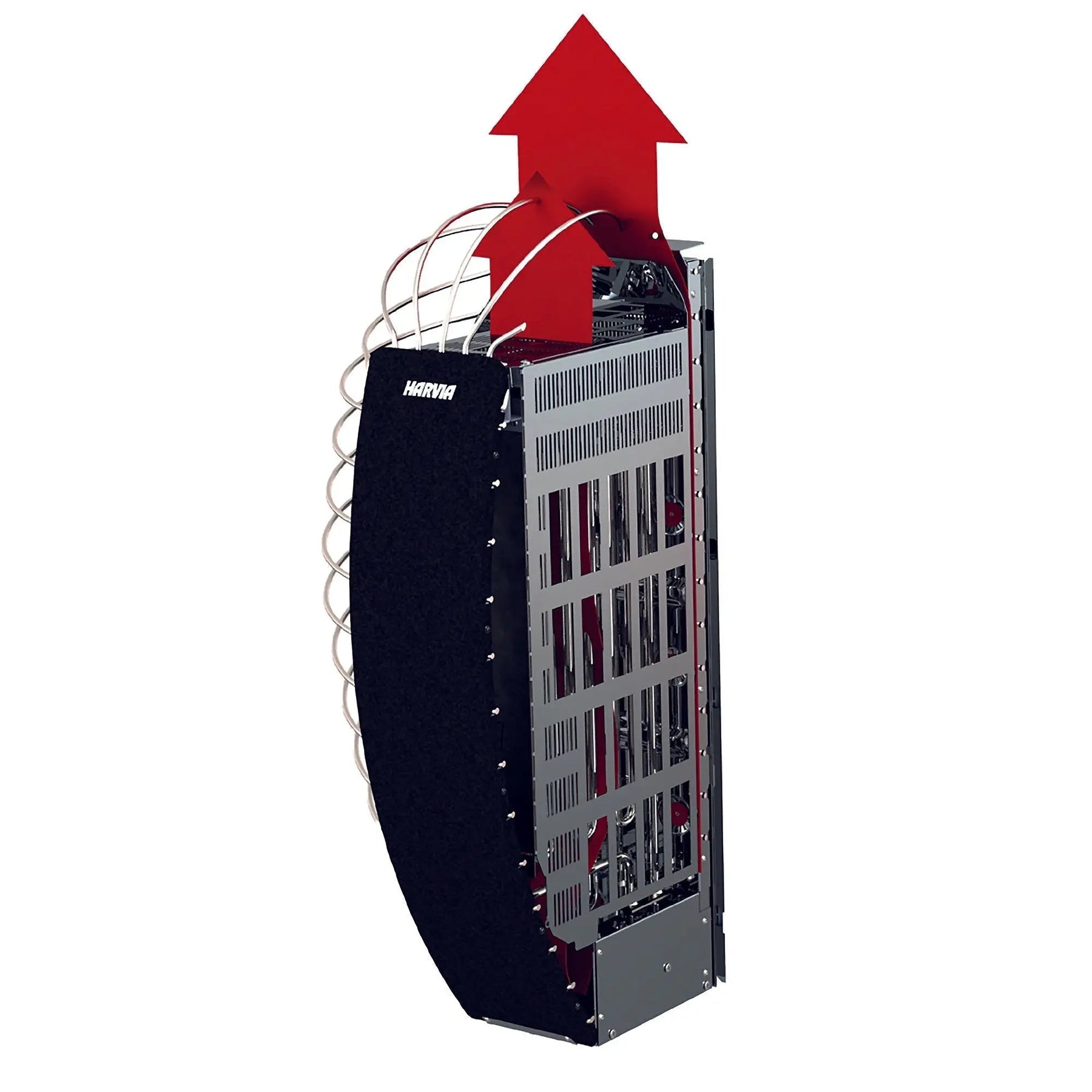

- Heats up the sauna quickly and safely
- Integrated safety functions ensure safe use
- Compatible with the Xenio Controls
- Designed, engineered, and made in Finland
- For sauna rooms from 177 to 494 cu. ft.
- 110 pound stone capacity
- Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Features of Harvia Xenio CX45 Sauna Control Package:
- For up to 17kw heaters (U1) and 15kw heaters (U3)
- Works with Spirit, Cilindro, Club and Virta series heaters (Not Combi)
- Contols operating time
- Controls temperature
- Controls lighting
- Controls fan
- Can be wall-mounted or surface embedded
- 3.4"W x 1"D x 4.4"H
About MyHarvia Application
- Control lighting
- Control of fan
- On-time feature
- Timed start feature
- Week Clock
- Safety device option
- Time zone selection
- Daylight saving selection
- Temperature adjustment
- Humidity adjustment
- Application not available in all countries
- Can be connected to unlimited amount of devices
- Access to control panel updates for the latest features and improved functions

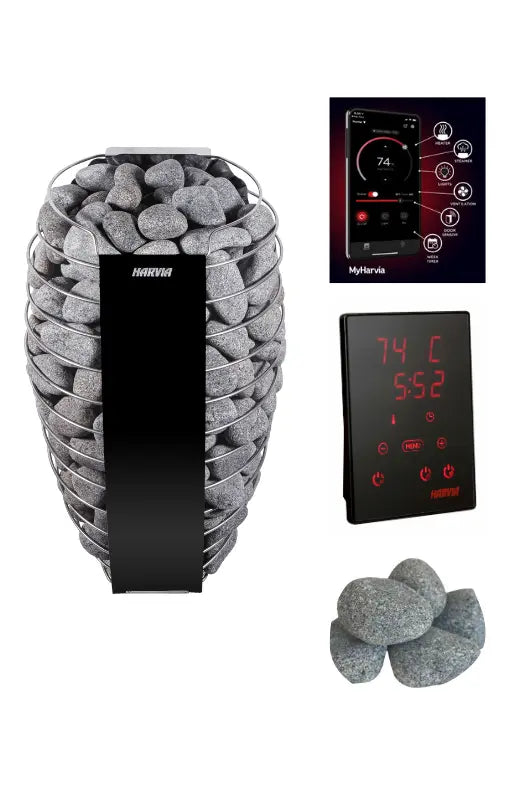

Package Includes
- Harvia Spirit SP90E Electric Sauna Heater x 1
- Harvia Xenio CX45 WiFi Sauna Control Package x 1
-

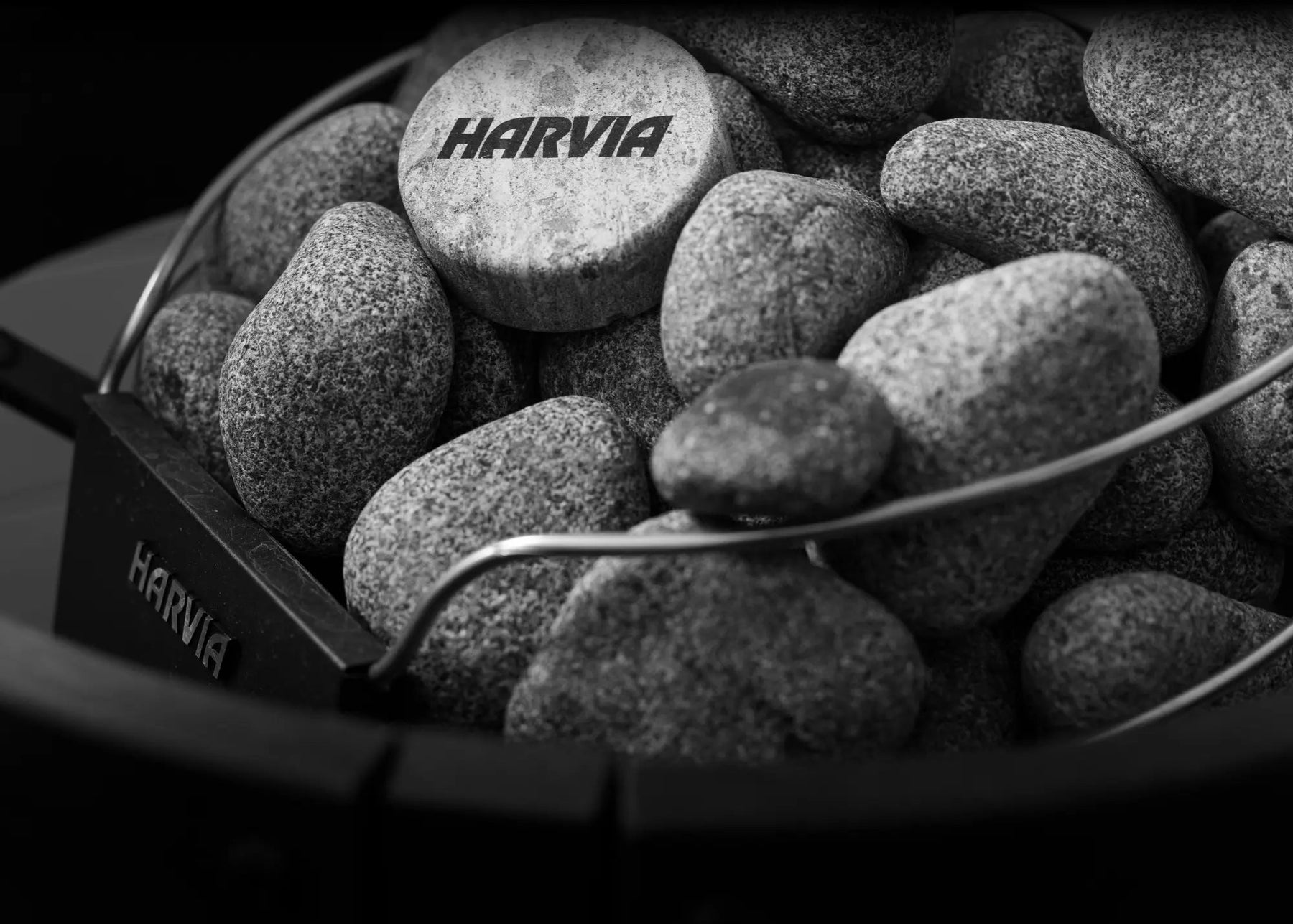

Harvia R-991 Special Sauna Stones x 4
Specifications
|
Model |
SP90E |
|
Room Size |
177-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
240 |
|
Phase |
1 |
|
Amperage |
37.5 |
|
Circuit Breaker |
 |
|
Wire Size AWG |
8 |
|
Safety Listing |
ETL (Electrical Testing Laboratories) |
|
Minimum Ceiling Height |
82.7" (210 cm) |
|
Safety Distance (Front to Back) |
16.3" (41.4 cm) |
|
Safety Distance (Left to Right) |
21.4" (54.4 cm) |
|
Stone Capacity |
110 lbs (49.9 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
15" (38.1 cm) |
|
Depth |
13.1" (33.3 cm) |
|
Height |
29.5" (74.9 cm) |
|
Weight |
28.8 lbs (13.1 kg) |
|
Shipping Weight with Sauna Stones |
160.8 lbs (72.9 kg) |
Manuals
Harvia Spirit Manuals:
Harvia Xenio CX45 Manuals:
Installation and Operation Manual
Harvia Xenio Wifi Manuals:
